長い寿命 405nm 狭線幅ダイオードレーザ 1~200mW

価格: ¥13,662円


数量.
+-

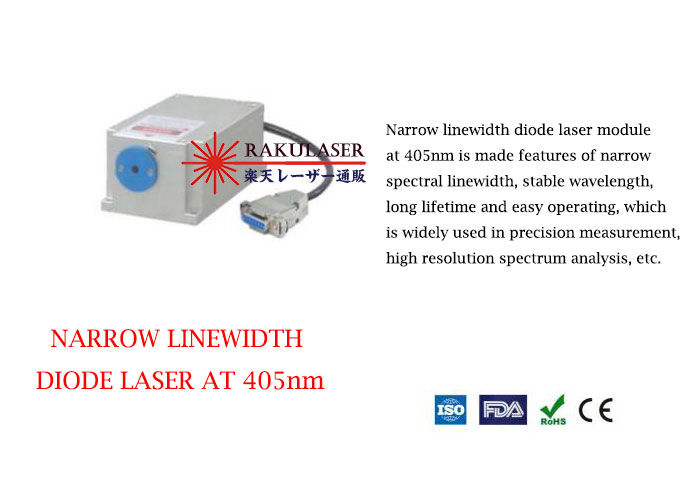

長い寿命 405nm 狭線幅ダイオードレーザ 1~200mW

特長:
1.狭スペクトル線幅
2.波長安定化
3.長い寿命| Long lifetime
4.操作簡単| Easy operating

応用:
1.精密測定
2.高解像度スペクトル解析


[注意]
1. This is a custom laser.
それはカスタムレーザーです。

2. 10000 JPY is the deposit, not the final price of this laser.
1万円の頭金、この制品の最終価格ではない。

3. Please contact us and tell us your all parameter reqirements. then we can offer you a quotation based on your needs.Then we can offer you a quotation based on your needs.
教えてください,を出力したい場合は、あなたの特別な要求。
それから、我々はあなたにあなたのニーズに基づいた引用を提供することができます。

仕様:

製品名 405nm 狭線幅ダイオードレーザ
型番 MDL-E-405
波長(nm) 405±5 405±1
出力パワー (mW) >1, 2, 3, …,50 >50, 60, 70,…,200
横モード Near TEM00 多モード
動作モード CW
電力安定性 (rms, over 4 hours) <1%, <3%, <5%
スペクトル線幅(nm) <0.06, <0.03(余分なヒートシンク)
ビームの発散角、全角度(mrad)  0.5 <1.0
開口部のビーム直径 (1/e2 ,mm) ~2.5 ~1.2
偏光比 >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional)
ビームプリント基板高さ (mm) 30
予熱時間 (分) <10
動作温度(℃) 20~30
電力供給(90-264VAC) PSU-H-FDA PSU-III-FDA/ PSU-III-LED
予想寿命が (時間) 10000
保証期 1年
405nm Narrow Linewidth Diode Laser 1~200mW

405nm Narrow Linewidth Diode Laser 1~200mW

405nm Narrow Linewidth Diode Laser 1~200mW


この商品は2017年05月31日(水)に登録されました。
