457nm 1000mW~5000mW 青 DPSSレーザー CWレーザー TTL変調

価格: ¥13,662円


数量.
+-

457nm 1000mW~5000mW 青 DPSSレーザー CWレーザー TTL変調



注意:
1. 10000 Yen is the downpayment, not the final price of this product.
1万円の頭金ではなく、この製品の最終的な価格。

2. Please tell us, which output power you want,and your special reqirements.
  then we can offer you a quotation based on your needs.
教えてください,を出力したい場合は、あなたの特別な要求。
それから、我々はあなたにあなたのニーズに基づいた引用を提供することができます。


[仕様]
波長|Wavelength: 457nm
出力|Output Power: 1000mW/1500mW/2000mW/3000mW/4000mW/5000mW (選択してください)
ワーキングモード|Working Mode: CW
ビームモード - 横|Beam Mode - Transverse: Near TEM00
ビームモード|Beam Mode -Longitude: Multi-longitude
スペクトル線幅|Spectra Linewidth: <0.1nm
偏光|Polarization: Line polarization
偏光比|Polarization Ratio: >100:1
ビーム品質|Beam Quality: <2 M2 factor
ビームダイバージェンス(全角、ミリラジアン)|Beam Divergence(full angle,mrad): 2.0±0.2
開口部でのビーム径|Beam Diameter at Aperture (mm): 3.5±0.2
ビーム丸み|Beam Roundness: >90%
パワー安定性|Power Stability(RMS,over 8 hours): <5%
アパーチャの位置|Aperture Position(mm): 84

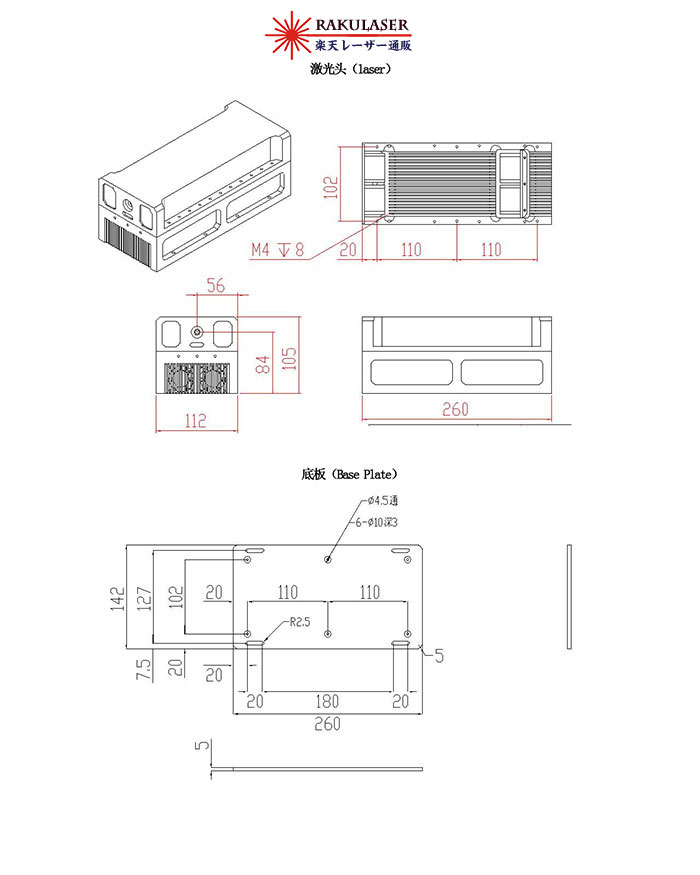

レーザーヘッド - 外形寸法|Laser Head - Dimensions (L x W x H,mm): 260 x 112 x 105
レーザーヘッド|Laser Head - Net Weight (kg): 4.5
外部変調|External Modulation: 5V TTL / 5V Analogue
変調の反復|Modulating Repetition: 10KHz TTL / 5KHz Analogue
冷却システムは|Cooling System: TEC+Air-cooled
ウォームアップ時間|Warm-up Time (minutes): <15
動作温度|Operation Temperature (℃): 18~30
期待寿命|Expected Lifetime (hours): >10000
保証期間|Warranty Time: 1 year
