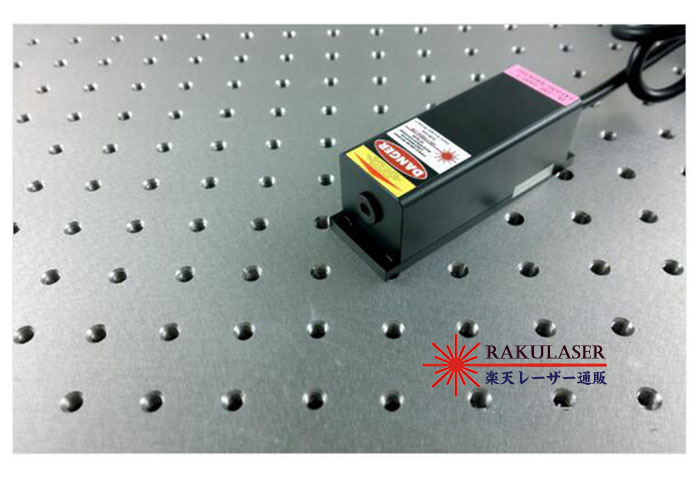

488nm 50mW 靑色の楕円光斑 半導体レーザー

価格: ¥1,158,538円


数量.
+-

488nm 50mW 靑色の楕円光斑 半導体レーザー

注意:
This is a custom product, $7619 is the price of 50mW laser.If you need other output power,or need to add fiber coupling or have special requirements, please contact us.
この注文製品,848000円は 50mwのレーザーの価格.もしあなた必要でその他出力パワー,光ファイバ結合する,または特別パラメータ要求、连絡してください。

[特長]
1.高出力安定性(<3%)
2.楕円光斑出力

[規格]
波長|Wavelength:488nm
出力電力|Output Power:1-50mW
作業温度|Operating Temperature: 0°C-40°C
貯蔵温度|Storage Temperature:  -40°C-85°C


パラメータ 作業条件 記号 最小の 类型 最大 単位
出力パワー APC PO     50 mW
出力安定性 2hrs Ps     3 %
中心波長 @PO λc   488   nm
スペクトル線幅 @PO FWHM   2   nm
ビーム直径 1/e2 完全な角 D//   1.5   mm
D┴   3   mm
ビーム発散角 1/e2 完全な角 Div//   1.0   mrad
Div┴   0.5   mm
光点安定性 25°C       0.05 mrad
予熱時間 @PO Tw     5
騒音 RMS(10Hz-100MHz)  N   1   %
使用寿命 @PO MTBF 10000     時間
488nm 50mW 靑色の楕円光斑 半導体レーザー

488nm 50mW 靑色の楕円光斑 半導体レーザー

488nm 50mW 靑色の楕円光斑 半導体レーザー

488nm 50mW 靑色の楕円光斑 半導体レーザー


この商品は2017年04月28日(金)に登録されました。
