X軸精密プラットフォーム アゲハ式ガイド手動で微調整のステージ L8035-17X 35*35

価格: ¥10,930円


数量.
+-

X軸精密プラットフォーム アゲハ式ガイド手動で微調整のステージ L8035-17X 35*35

特長:
1.Aluminum Alloy precision machining |アルミニウム合金素材精密加工,
2.Drive the gear rack, moving speed, gear handle in surface mounting, convenient operation.
  駆動方式採用歯車ラック、移動速度が速く、歯車ハンドルは扯面インストール、操作が便利だ。
3.The dovetail guide rail is adopted, and the displacement is stable,used for precision requirements are not high, fast moving.
  採用アゲハ式レール、変位平穏、に精度要求は高くない、高速移動。
4.The upper and the lower parts are provided with a connecting hole with a standard hole distance, which is convenient to connect with other displacement tables.
  上下部には標準穴の接続穴があり、便利と他の変位台との接続がある

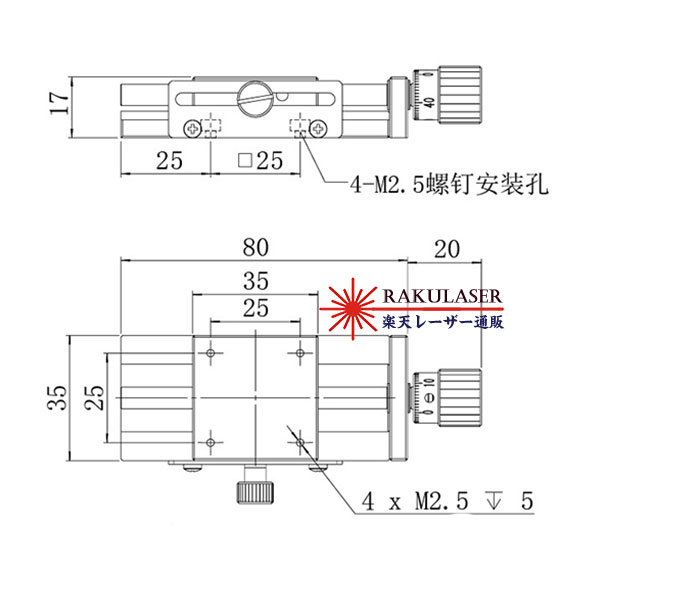

型番 L8035-17X
メサのサイズ  35*35mm
行程 ±20mm
駆動方式 螺子スクリューナット
レール型 アゲハ式レール
重量 0.25kg
荷重量   2kgf
材料 アルミ合金
表面処理  >表面黒色酸化
X軸精密プラットフォーム アゲハ式ガイド手動で微調整のステージ L8035-17X 35*35

X軸精密プラットフォーム アゲハ式ガイド手動で微調整のステージ L8035-17X 35*35
